OverlapFilter: Add and validate docs, rename

docs/detection/double_detection_filter.md

@@ -0,0 +1,30 @@
+---
+comments: true
+status: new
+---
+
+# Double Detection Filter
+
+<div class="md-typeset">
+  <h2><a href="#supervision.detection.overlap_filter.OverlapFilter">OverlapFilter</a></h2>
+</div>
+
+:::supervision.detection.overlap_filter.OverlapFilter
+
+<div class="md-typeset">
+  <h2><a href="#supervision.detection.overlap_filter.box_non_max_suppression">box_non_max_suppression</a></h2>
+</div>
+
+:::supervision.detection.overlap_filter.box_non_max_suppression
+
+<div class="md-typeset">
+  <h2><a href="#supervision.detection.overlap_filter.mask_non_max_suppression">mask_non_max_suppression</a></h2>
+</div>
+
+:::supervision.detection.overlap_filter.mask_non_max_suppression
+
+<div class="md-typeset">
+  <h2><a href="#supervision.detection.overlap_filter.box_non_max_merge">box_non_max_merge</a></h2>
+</div>
+
+:::supervision.detection.overlap_filter.box_non_max_merge

docs/detection/tools/inference_slicer.md

@@ -5,7 +5,3 @@ comments: true
 # InferenceSlicer

 :::supervision.detection.tools.inference_slicer.InferenceSlicer
-
-# Overlap Handling Strategy
-
-:::supervision.detection.overlap_handling.OverlapHandlingStrategy

docs/detection/utils.md

@@ -17,24 +17,6 @@ status: new

 :::supervision.detection.utils.mask_iou_batch

-<div class="md-typeset">
-  <h2><a href="#supervision.detection.overlap_handling.box_non_max_suppression">box_non_max_suppression</a></h2>
-</div>
-
-:::supervision.detection.overlap_handling.box_non_max_suppression
-
-<div class="md-typeset">
-  <h2><a href="#supervision.detection.overlap_handling.mask_non_max_suppression">mask_non_max_suppression</a></h2>
-</div>
-
-:::supervision.detection.overlap_handling.mask_non_max_suppression
-
-<div class="md-typeset">
-  <h2><a href="#supervision.detection.overlap_handling.box_non_max_merge">box_non_max_merge</a></h2>
-</div>
-
-:::supervision.detection.overlap_handling.box_non_max_merge
-
 <div class="md-typeset">
   <h2><a href="#supervision.detection.utils.polygon_to_mask">polygon_to_mask</a></h2>
 </div>

mkdocs.yml

@@ -48,6 +48,7 @@ nav:
         - Core: detection/core.md
         - Annotators: detection/annotators.md
         - Metrics: detection/metrics.md
+        - Double Detection Filter: detection/double_detection_filter.md
         - Utils: detection/utils.md
     - Keypoint Detection:
         - Core: keypoint/core.md

supervision/__init__.py

@@ -40,8 +40,8 @@ from supervision.detection.annotate import BoxAnnotator
 from supervision.detection.core import Detections
 from supervision.detection.line_zone import LineZone, LineZoneAnnotator
 from supervision.detection.lmm import LMM
-from supervision.detection.overlap_handling import (
-    OverlapHandlingStrategy,
+from supervision.detection.overlap_filter import (
+    OverlapFilter,
     box_non_max_merge,
     box_non_max_suppression,
     mask_non_max_suppression,

supervision/detection/core.py

@@ -8,7 +8,7 @@ import numpy as np

 from supervision.config import CLASS_NAME_DATA_FIELD, ORIENTED_BOX_COORDINATES
 from supervision.detection.lmm import LMM, from_paligemma, validate_lmm_and_kwargs
-from supervision.detection.overlap_handling import (
+from supervision.detection.overlap_filter import (
     box_non_max_merge,
     box_non_max_suppression,
     mask_non_max_suppression,

supervision/detection/overlap_filter.py

@@ -230,7 +230,7 @@ def box_non_max_merge(
     return merge_groups


-class OverlapHandlingStrategy(Enum):
+class OverlapFilter(Enum):
     """
     Enum specifying the strategy for filtering overlapping detections.

@@ -239,11 +239,9 @@ class OverlapHandlingStrategy(Enum):
         NON_MAX_SUPPRESSION: Filter detections using non-max suppression. This means,
             detections that overlap by more than a set threshold will be discarded,
             except for the one with the highest confidence.
-        NON_MAX_MERGE: Merge detections with non-max-merging. This means,
+        NON_MAX_MERGE: Merge detections with non-max merging. This means,
             detections that overlap by more than a set threshold will be merged
             into a single detection.
-

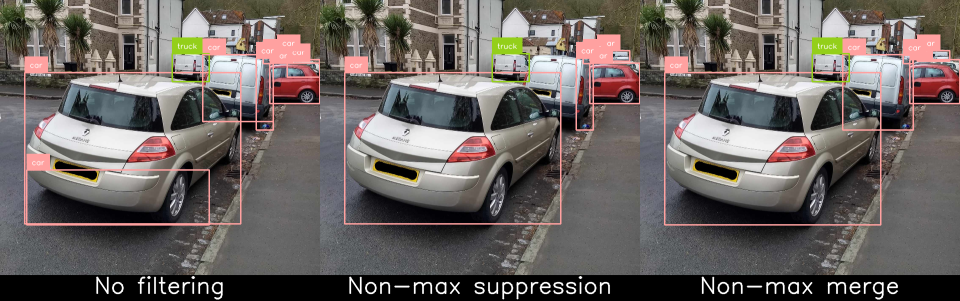

-    ![overlap-handling-strategies-example](https://media.roboflow.com/supervision-docs/overlap-handling-strategies-example.png)
     """

     NONE = "none"
@@ -251,15 +249,15 @@ class OverlapHandlingStrategy(Enum):
     NON_MAX_MERGE = "non_max_merge"


-def validate_overlapping_handling_strategy(
-    strategy: Union[OverlapHandlingStrategy, str],
-) -> OverlapHandlingStrategy:
+def validate_overlap_filter(
+    strategy: Union[OverlapFilter, str],
+) -> OverlapFilter:
     if isinstance(strategy, str):
         try:
-            strategy = OverlapHandlingStrategy(strategy.lower())
+            strategy = OverlapFilter(strategy.lower())
         except ValueError:
             raise ValueError(
                 f"Invalid strategy value: {strategy}. Must be one of "
-                f"{[e.value for e in OverlapHandlingStrategy]}"
+                f"{[e.value for e in OverlapFilter]}"
             )
     return strategy

supervision/detection/tools/inference_slicer.py

@@ -5,10 +5,7 @@ from typing import Callable, Optional, Tuple, Union
 import numpy as np

 from supervision.detection.core import Detections
-from supervision.detection.overlap_handling import (
-    OverlapHandlingStrategy,
-    validate_overlapping_handling_strategy,
-)
+from supervision.detection.overlap_filter import OverlapFilter, validate_overlap_filter
 from supervision.detection.utils import move_boxes, move_masks
 from supervision.utils.image import crop_image
 from supervision.utils.internal import SupervisionWarnings
@@ -56,7 +53,7 @@ class InferenceSlicer:
             `(width, height)`.
         overlap_ratio_wh (Tuple[float, float]): Overlap ratio between consecutive
             slices in the format `(width_ratio, height_ratio)`.
-        overlap_handling_strategy (Union[OverlapHandlingStrategy, str]): Strategy for
+        overlap_filter_strategy (Union[OverlapFilter, str]): Strategy for
             filtering or merging overlapping detections in slices.
         iou_threshold (float): Intersection over Union (IoU) threshold
             used when filtering by overlap.
@@ -76,20 +73,18 @@ class InferenceSlicer:
         callback: Callable[[np.ndarray], Detections],
         slice_wh: Tuple[int, int] = (320, 320),
         overlap_ratio_wh: Tuple[float, float] = (0.2, 0.2),
-        overlap_handling_strategy: Union[
-            OverlapHandlingStrategy, str
-        ] = OverlapHandlingStrategy.NON_MAX_SUPPRESSION,
+        overlap_filter_strategy: Union[
+            OverlapFilter, str
+        ] = OverlapFilter.NON_MAX_SUPPRESSION,
         iou_threshold: float = 0.5,
         thread_workers: int = 1,
     ):
-        overlap_handling_strategy = validate_overlapping_handling_strategy(
-            overlap_handling_strategy
-        )
+        overlap_filter_strategy = validate_overlap_filter(overlap_filter_strategy)

         self.slice_wh = slice_wh
         self.overlap_ratio_wh = overlap_ratio_wh
         self.iou_threshold = iou_threshold
-        self.overlap_handling_strategy = overlap_handling_strategy
+        self.overlap_filter_strategy = overlap_filter_strategy
         self.callback = callback
         self.thread_workers = thread_workers

@@ -120,7 +115,10 @@ class InferenceSlicer:
                 result = model(image_slice)[0]
                 return sv.Detections.from_ultralytics(result)

-            slicer = sv.InferenceSlicer(callback = callback)
+            slicer = sv.InferenceSlicer(
+                callback=callback,
+                overlap_filter_strategy=sv.OverlapFilter.NON_MAX_SUPPRESSION,
+            )

             detections = slicer(image)
             ```
@@ -141,18 +139,15 @@ class InferenceSlicer:
                 detections_list.append(future.result())

         merged = Detections.merge(detections_list=detections_list)
-        if self.overlap_handling_strategy == OverlapHandlingStrategy.NONE:
+        if self.overlap_filter_strategy == OverlapFilter.NONE:
             return merged
-        elif (
-            self.overlap_handling_strategy
-            == OverlapHandlingStrategy.NON_MAX_SUPPRESSION
-        ):
+        elif self.overlap_filter_strategy == OverlapFilter.NON_MAX_SUPPRESSION:
             return merged.with_nms(threshold=self.iou_threshold)
-        elif self.overlap_handling_strategy == OverlapHandlingStrategy.NON_MAX_MERGE:
+        elif self.overlap_filter_strategy == OverlapFilter.NON_MAX_MERGE:
             return merged.with_nmm(threshold=self.iou_threshold)
         else:
             warnings.warn(
-                f"Invalid overlap filter strategy: {self.overlap_handling_strategy}",
+                f"Invalid overlap filter strategy: {self.overlap_filter_strategy}",
                 category=SupervisionWarnings,
             )
             return merged

test/detection/test_overlap_filter.py

@@ -4,7 +4,7 @@ from typing import List, Optional
 import numpy as np
 import pytest

-from supervision.detection.overlap_handling import (
+from supervision.detection.overlap_filter import (
     box_non_max_suppression,
     group_overlapping_boxes,
     mask_non_max_suppression,
